Engineered to meet the stringent demands of advanced high frequency circuit designers. This high impedance probe combines full DC capability, rise/fall times of 120 ps, and a nominal loading input impedance of 10 megohm shunted by 0.1 pf. Signal attenuation is 20:1 with a 50 ohm oscilloscope input.
Like our other active probes, the Model 34A achieves its bandwidth using just one probe point, which greatly simplifies internal node testing without sacrificing performance.
An assortment of user replaceable probe tips are available for a variety of probing needs. The Model 34A is powered by our standard Picoprobe® power supply.

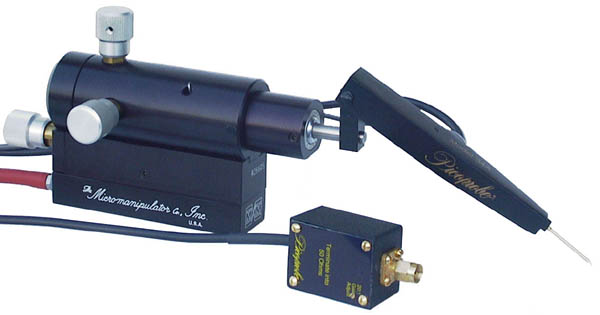

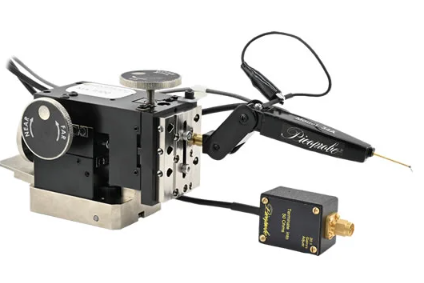

The Picoprobe® Model 34A can be mounted on any micropositioner for use with any probing system.
MODEL 34A PDF
SPECIFICATIONS
| Specifications | |
|---|---|
| Input Capacitance | 0.1pf |
| Input Resistance | 10.0 megohm |
| Rise/fall time | 120 ps (5V pulse) |
| Frequency Response | DC to 3 GHz (-3dB) |
| Operating Range | -7V to +10V |
| Linearity | 0.5% |
| Gain Accuracy | ±3% |
| Signal Attenuation | 20 : 1 |
| Model 34A Replacement Tips | |||
|---|---|---|---|
| Part Number | Tungsten Probing Wire Shaft Diameter | Point Radius |  |
| 34A-4-5 | 5 micron | <0.1 micron | |
| 34A-4-10 | 10 micron | <0.1 micron | |
| 34A-4-22 | 22 micron | <1.0 micron | |
| 34A-4-35 | 35 micron | <2.0 micron | |
| 34A-4-60 | 60 micron | <3.0 micron | |
| 34A-4-125 | 125 micron | <5.0 micron | |
Requires the use of a Picoprobe® Power Supply. Please specify 110V or 220V when ordering.
